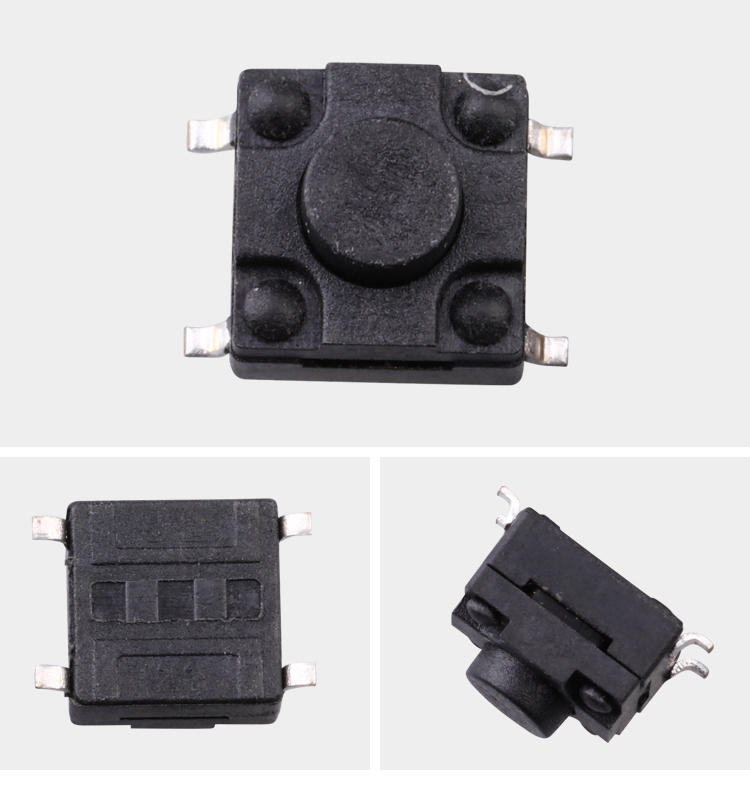

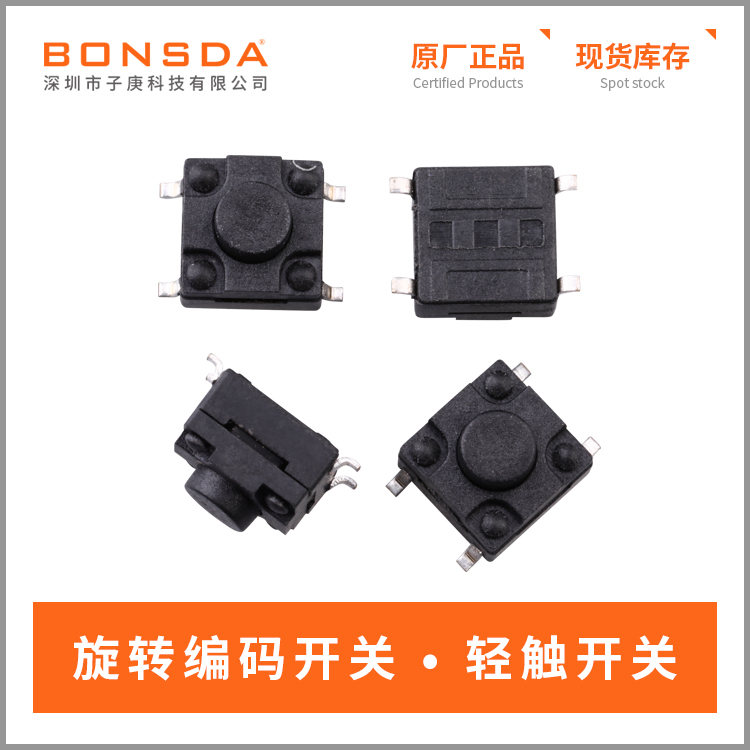

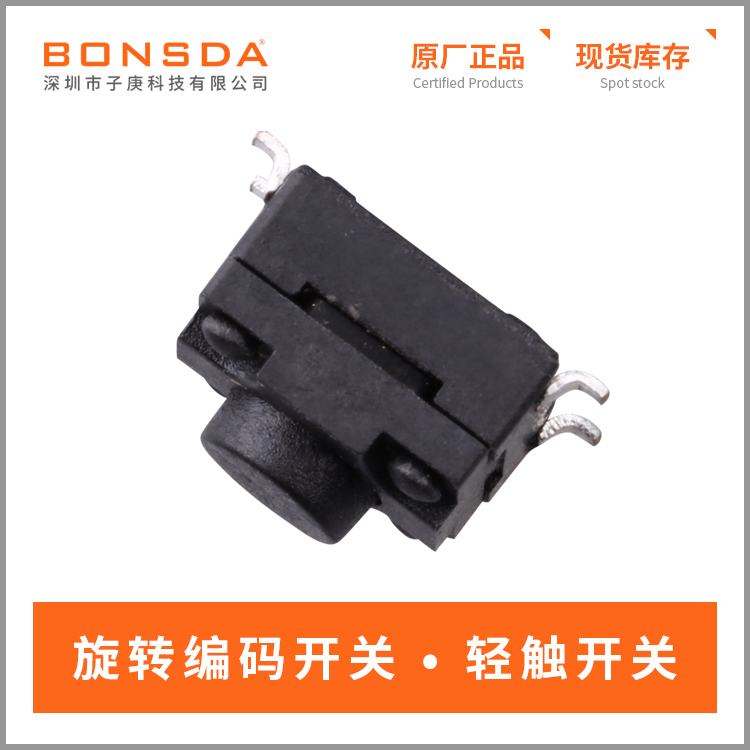

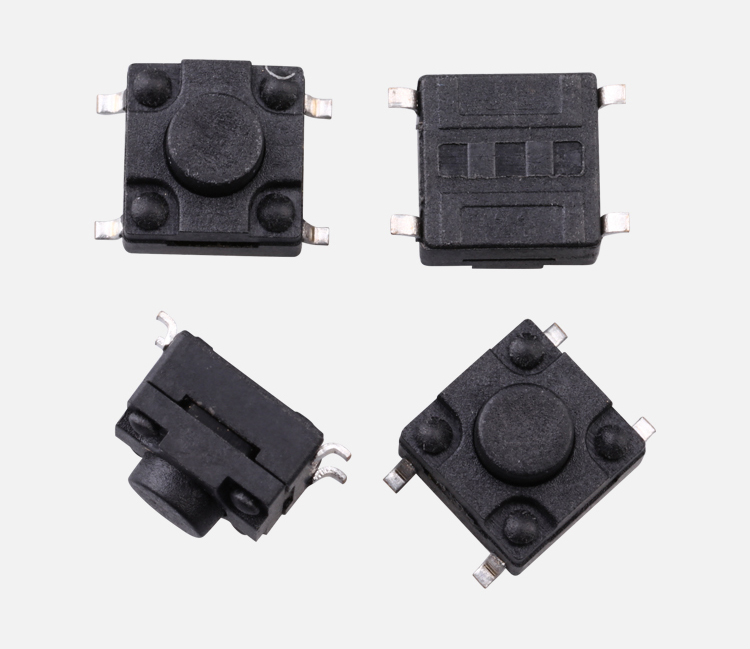

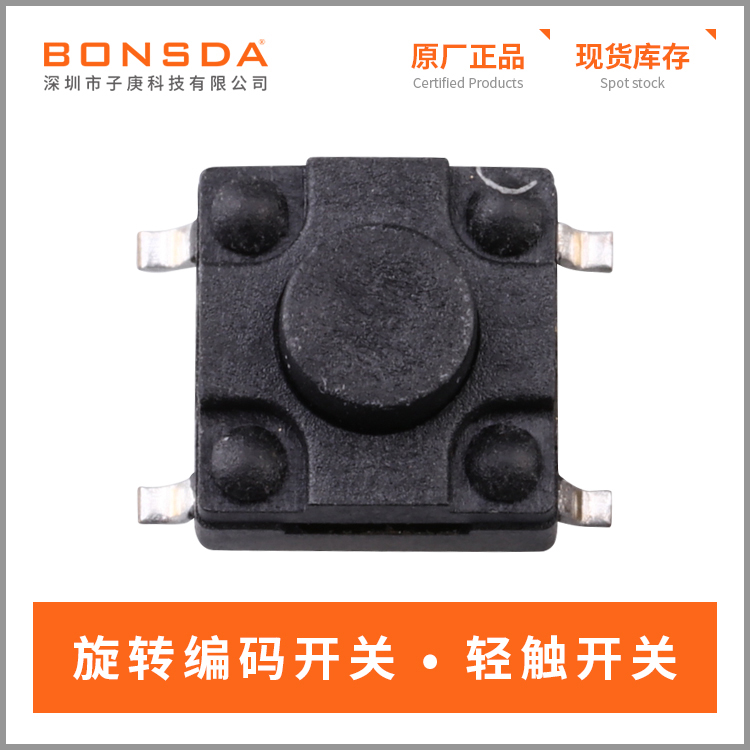

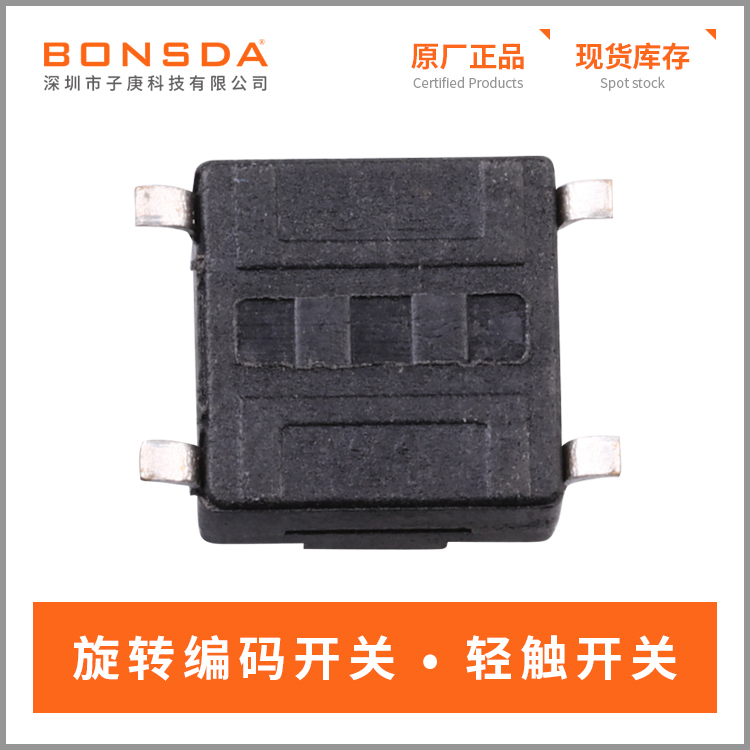

SD-1141
6*6四脚贴片防水按键SD-1141轻触开关
844

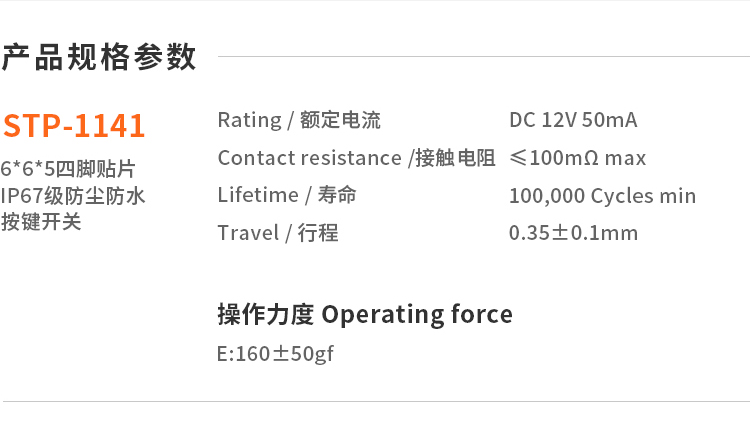

1. Rating : DC 12V, 50mA
2. Travel : 0.25±0.1m/m
3. Operating Force : 180±50gf
4. Contact Resistance : 100mΩ Max.
5. Life :100,000 cycles1.Rating:DC12V,50mA;
2.Contact Resistance:100mΩMax;
3.Operating Force:160±50gf
4.Travel:0.35±0.1mm
5.Insulation Resistance:100MΩMin;
6.Withstand Voltage:250V 1Min
7.Operating Life:100,000cycles Min
2. Travel : 0.25±0.1m/m
3. Operating Force : 180±50gf
4. Contact Resistance : 100mΩ Max.
5. Life :100,000 cycles1.Rating:DC12V,50mA;
2.Contact Resistance:100mΩMax;
3.Operating Force:160±50gf
4.Travel:0.35±0.1mm
5.Insulation Resistance:100MΩMin;
6.Withstand Voltage:250V 1Min
7.Operating Life:100,000cycles Min
